Chemical synthesis—whether it happens in a pharmaceutical lab or on an industrial scale—relies heavily on reliable, safe, and highly controllable reaction vessels. The Stainless Steel Reactor (often shortened to SSR) is one of the most trusted pieces of equipment in that arsenal. Add a thermal jacket around its wall and the humble SSR evolves into the versatile Stainless Steel Jacketed Reactor, capable of exquisite temperature control and rapid heat exchange. This article breaks down the working principle of SSR reactors in plain English, giving you actionable insight into why they dominate modern processing plants.

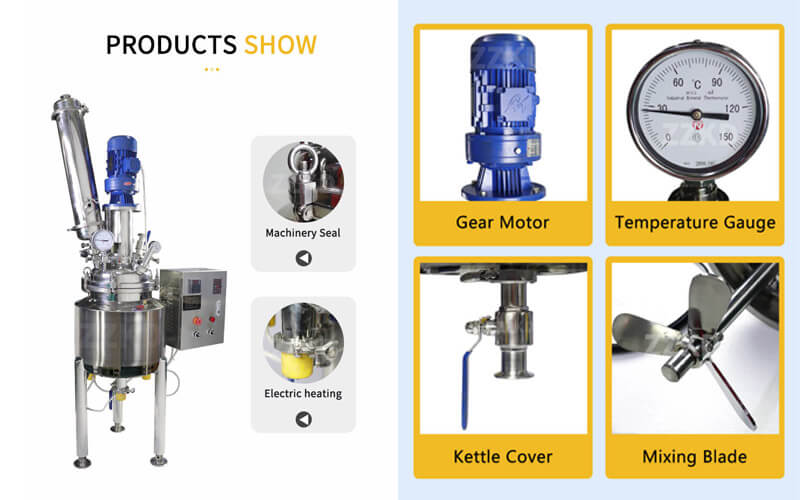

1. Core Components That Make an SSR Reactor Tick
An SSR reactor might look like a shiny, oversized stainless-steel drum, but its interior is engineered with precision:
- Reactor Vessel: Fabricated from corrosion-resistant 304L or 316L stainless steel, ensuring chemical compatibility and long working life.
- Agitator or Impeller: Mixes reactants uniformly and improves mass transfer.
- Thermal Jacket: A double-wall cavity through which a heating or cooling medium (steam, water, oil, or glycol) circulates.
- Instrumentation: Sensors for temperature, pressure, and pH, often connected to PLC or DCS for automation.
- Sealing & Safety: Mechanical seals, rupture discs, and relief valves safeguard against leaks or over-pressure.
Question: Is a thermal jacket the only way to control temperature inside an SSR reactor?
Answer: Not at all. Internal coils, electric heating bands, and even external half-pipes can be employed. However, a jacket offers a balanced combination of surface area, safety, and cleanability, which is why it remains the industry favorite.
2. The Working Principle in Three Easy Steps
Step 1 – Charging & Sealing
Raw materials are fed into the reactor either from the top manway or via bottom-loading valves. Once sealed, the system becomes a closed environment, ready for inert blanketing if sensitive reagents are involved.
Step 2 – Heat Transfer Through the Jacket
The real magic happens in the jacket. By circulating a fluid of controlled temperature, the SSR’s stainless-steel wall acts as a heat exchanger. Heat flows toward the colder side following Fourier’s law, allowing the reactor contents to reach and maintain the desired setpoint quickly.
Step 3 – Agitation & Reaction Kinetics
The impeller creates axial or radial flow (depending on its design), reducing concentration gradients and supporting uniform temperature throughout the bulk. The result: improved yield, cleaner product profiles, and shorter batch times.
Interested in the thermodynamic side of things? Our detailed guide on high-pressure reactors explains why pressure and temperature control often go hand in hand.
3. Why Stainless Steel Beats Glass-Lined for Many Tasks
| Feature | Stainless Steel Jacketed Reactor | Glass-Lined Reactor |
|---|---|---|
| Maximum Pressure | Up to 25 bar | Typically 6–10 bar |
| Thermal Shock Resistance | Excellent (ΔT > 150 °C) | Limited (ΔT ≈ 120 °C) |
| Mechanical Robustness | High; good for agitation of slurries | Moderate; glaze can chip under abrasion |
| Maintenance Downtime | Low | Moderate to High (re-glassing may be needed) |
4. Authority Check: Data Speaks Louder Than Marketing
According to a 2023 report by Grand View Research, global demand for stainless steel reactors is growing at a CAGR of 6.8 %—driven mostly by pharmaceutical and specialty-chemical sectors. Meanwhile, energy efficiency is becoming more central to procurement decisions. Why? Because energy can amount to 30 %–40 % of the total operating cost of a reaction process.
And technological disruption is everywhere. “Based on a Massachusetts Institute of Technology study, AI is expected to replace 30 % of current job positions by 2030.” If automation is rewriting the future of labor, automated reactors capable of self-optimizing temperature, agitation, and dosing profiles are a logical next step.
5. Jacket Design Variations Explained
Not all jackets look the same. Below are three common configurations:
- Conventional (Single) Jacket: Simplest form—fluid enters one side, exits the other. Good for small to medium vessels.
- Half-Pipe Coil Jacket: A continuous welded channel (like a half-pipe) wrapped around the vessel. It can handle higher pressures and offers improved turbulence.
- Dimple Jacket: Two thin stainless steel sheets spot-welded to create dimples. Light-weight, cost-effective, and extremely popular for large fermenters.
Question: Which jacket style is best for rapid heating and cooling cycles?
Answer: Half-pipe coil jackets generally provide the fastest thermal response because of the high-pressure, high-velocity flow they accommodate, resulting in greater heat-transfer coefficients.
Need a complete solvent-management loop around your reactor? Check out our Solvent Recycler Machine that pairs seamlessly with closed-loop synthesis.
6. Control Systems: The Brains of the Operation
Modern SSR reactors rarely operate “blind.” A typical setup incorporates:
- PID loops for temperature and pressure
- Variable-frequency drives (VFDs) for the agitator motor
- Level sensors for semi-batch or continuous feeding
- Safety interlocks tied to explosion-proof panels
Advanced units embed machine-learning algorithms to tweak jacket flow in real time. Even small temperature overshoots can lead to side reactions, so the ROI of precise control is huge—often paying for itself within a year of operation.
7. Cleaning, Validation, and GMP Compliance
For pharmaceutical use, stainless steel’s smooth, non-porous surface facilitates Clean-In-Place (CIP) and Sterilize-In-Place (SIP) cycles. Automated spray balls allow 360-degree coverage, slashing manual labor. By comparison, glass-lined reactors require stringent visual inspections to check for enamel cracks.
Read how proper solvent recovery can further streamline GMP campaigns in our article on Solvent Recovery Distillation Units Changing Industrial Processes.
8. Real-World Use Case: From Lab Scale to Pilot Plant
A biotech startup needed to scale up a 5-liter enzymatic reaction to 200 liters. By switching from a glass reactor to a Stainless Steel Jacketed Reactor outfitted with an internal coil and PLC control, they shaved 35 % off their batch time and saved approximately USD 120,000 in annual energy costs. The transition also allowed inline solvent recycling, enabled by a stainless steel chemical reactor port design that tied directly into a condenser loop.
Question: Can an SSR reactor handle both endothermic and exothermic reactions with equal efficiency?
Answer: Yes, provided the jacket-fluid system is engineered for the correct ΔT range. Using a dual-zone jacket or switching between hot oil and chilled glycol enables rapid transition between heating and cooling modes.
9. Buying Checklist: What to Ask Your Supplier
- What is the design pressure and temperature range?
- Is the reactor ASME, CE, or PED certified?
- What surface finish (Ra value) is provided?
- Are CIP/SIP nozzles included?
- Does the price include factory acceptance testing (FAT) and on-site commissioning?
For a transparent cost breakdown—including agitator options and optional high-pressure ratings—visit our rotovap price guide, which follows a similar “options-based” pricing philosophy.
10. Key Takeaways
The working principle of an SSR reactor boils down to controlled heat transfer, effective mixing, and robust safety. Stainless steel adds durability and broad chemical compatibility, while the jacket empowers precise temperature management. Whether you’re scaling formulation R&D or running a full-scale API plant, a Stainless Steel Jacketed Reactor offers the flexibility and reliability you need—today, and in an increasingly automated future.
